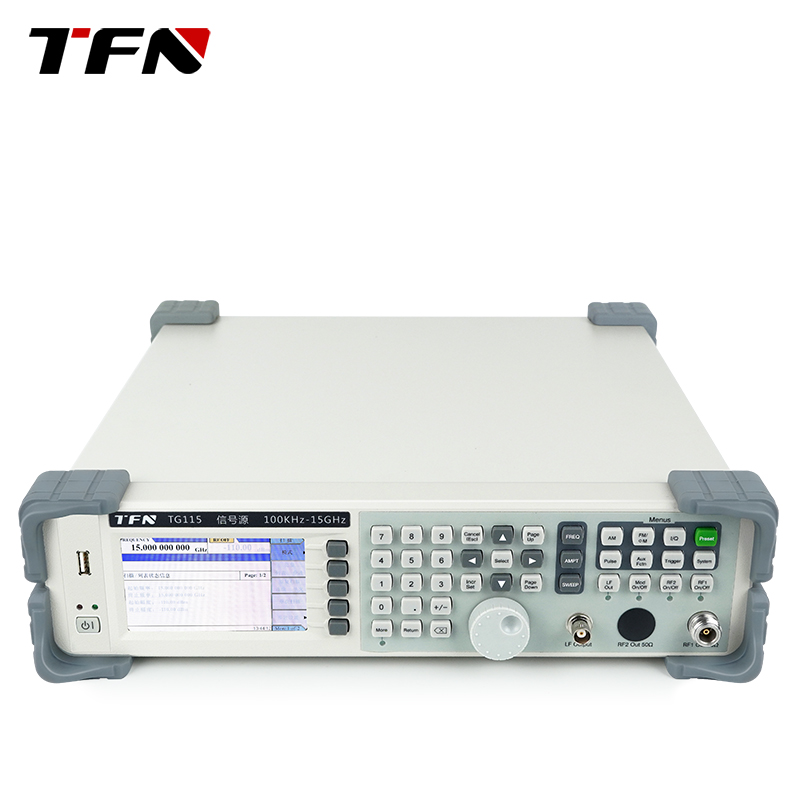

TG115 Signal Generator - High-Accuracy RF and Microwave Signal Source

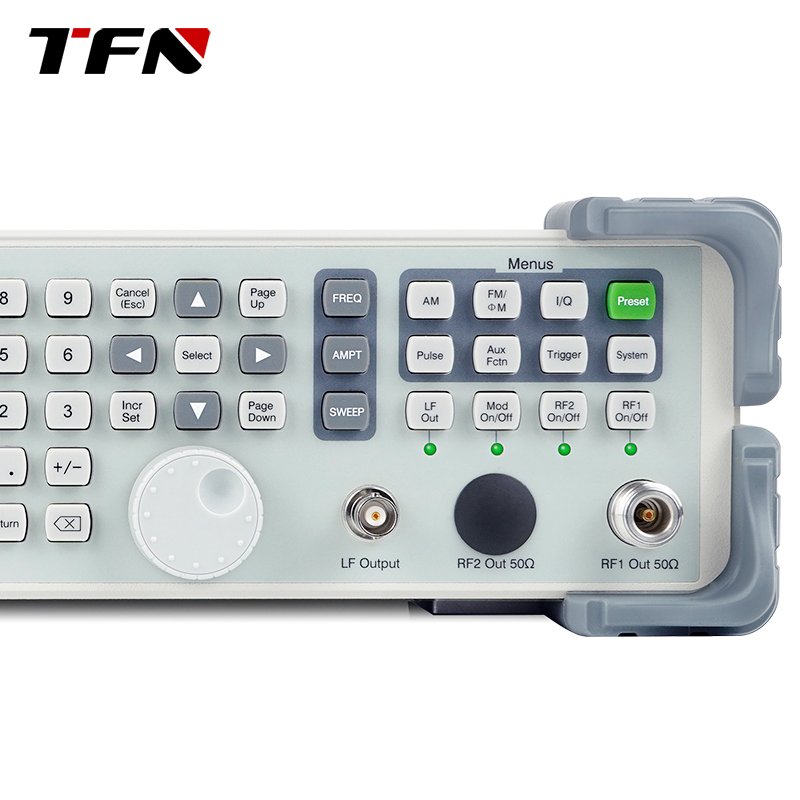

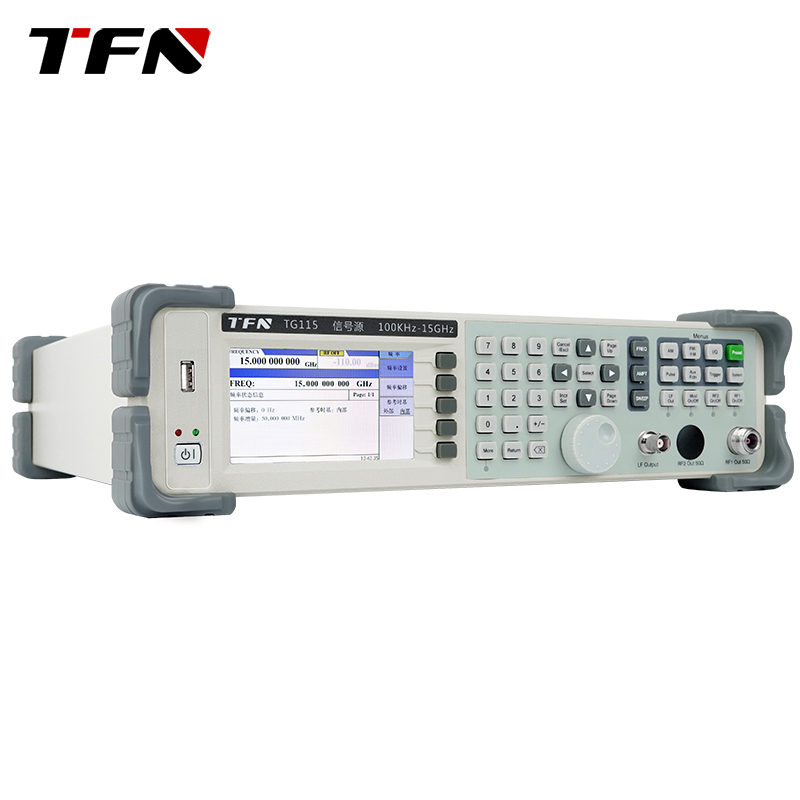

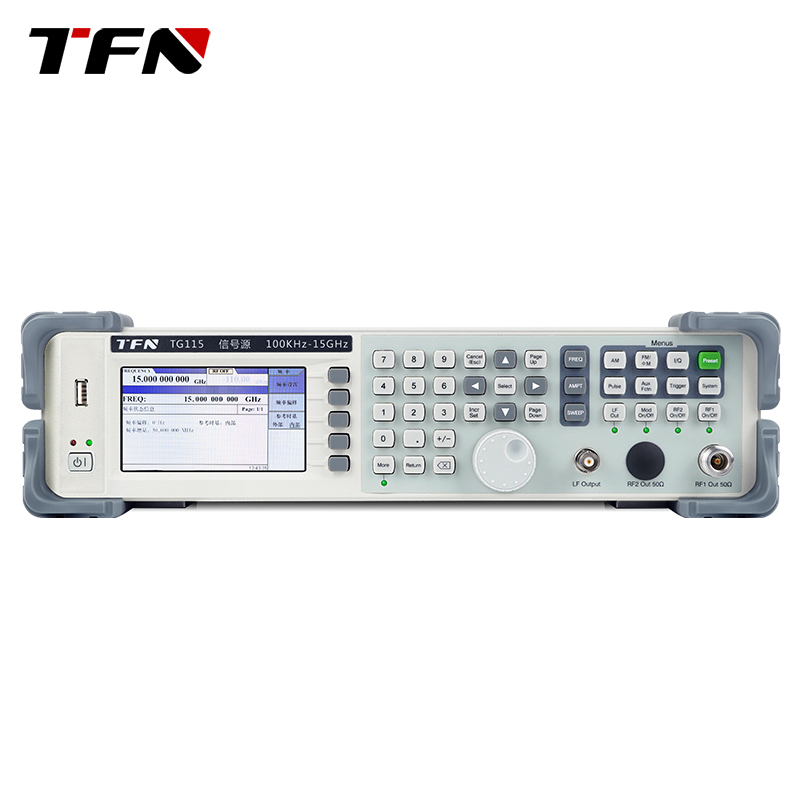

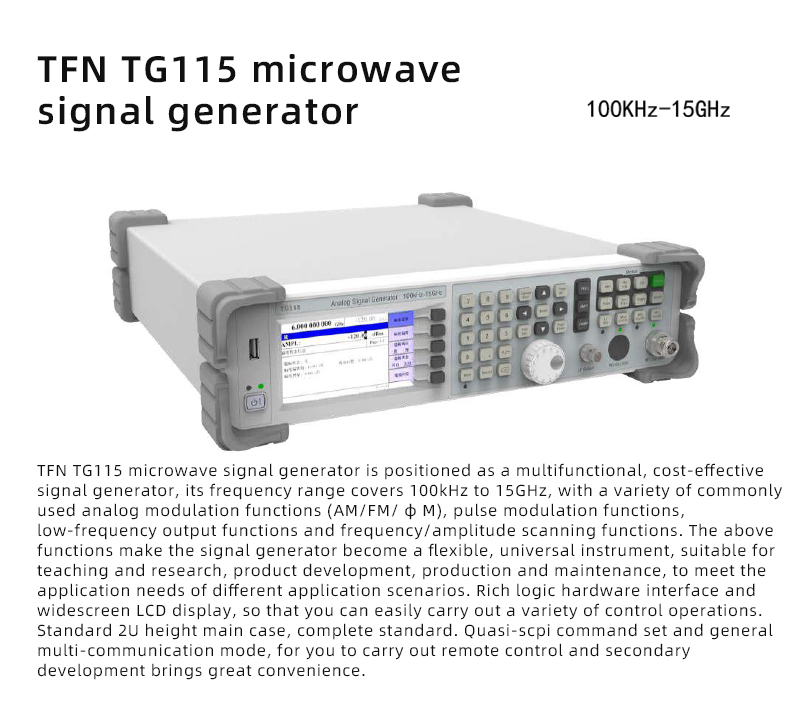

  The TFN TG115 Microwave Signal Generator is designed to be a versatile and cost-effective signal generator covering the frequency range of 100kHz to 15GHz, with a variety of commonly used analog modulation functions (AM/FM/ϕM), pulse modulation, low frequency output and frequency/amplitude scanning functions. These functions make the generator a flexible and versatile instrument suitable for teaching, research, product development, production and maintenance, meeting the needs of different application scenarios. The rich logic hardware interface and wide-screen LCD display make it easy for you to perform various control operations. The standard 2U height chassis, complete standard SCPI command set and universal multi-communication mode bring you great convenience for remote control and secondary development.

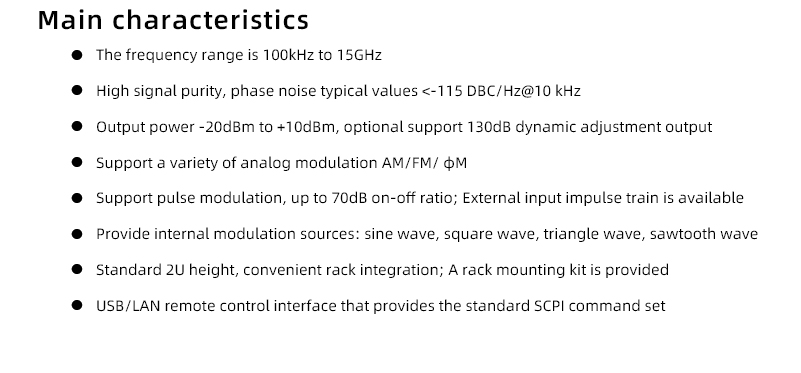

Main features:

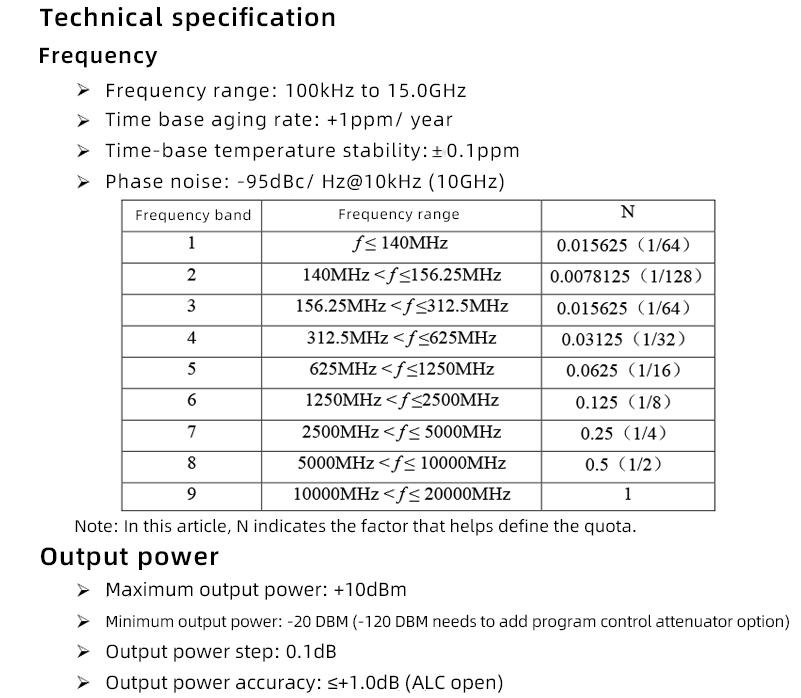

1. Frequency range is 100kHz～15GHz.

2. High signal purity, phase noise typical <-115dBc/Hz@10 kHz.

3. Output power -20dBm to +10dBm, optional support 130dB dynamic adjustment output.

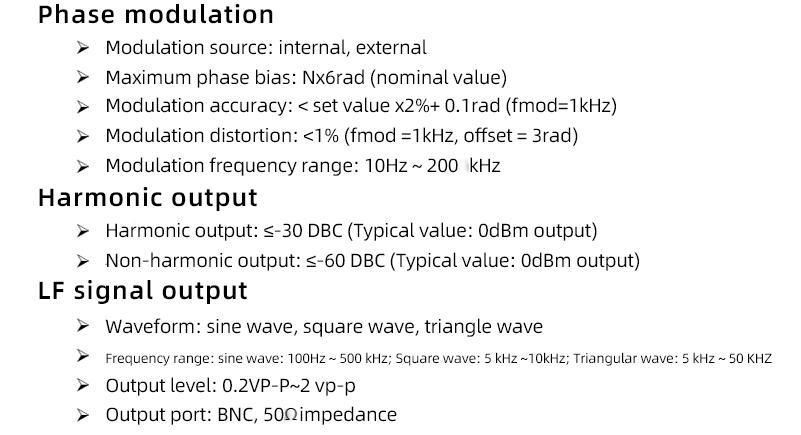

4. Support a variety of analog modulation AM/FM/ФM.

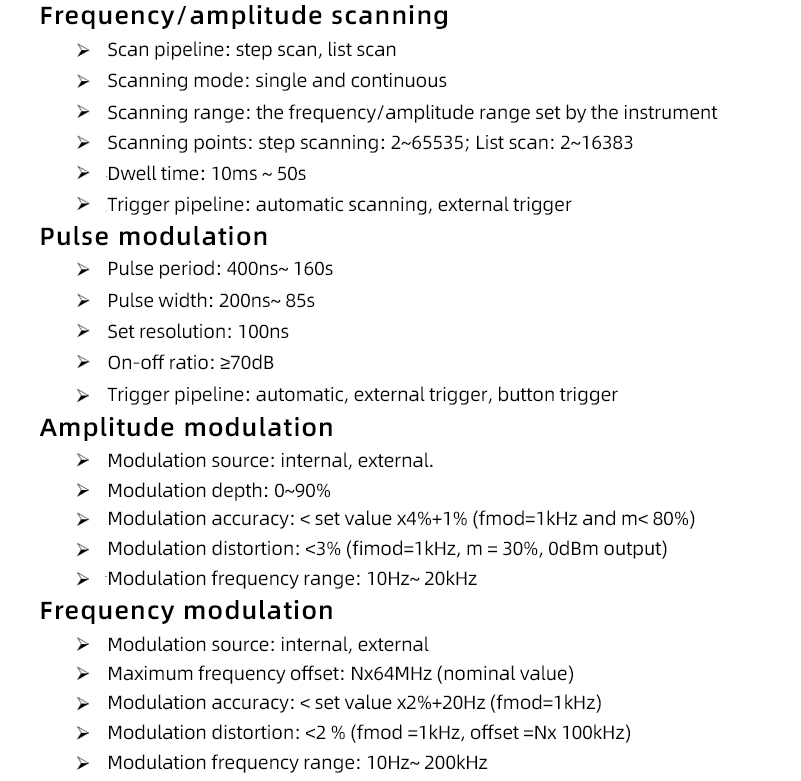

5. Support pulse modulation, up to 70dB on/off ratio; external input pulse sequence.

6. Provide internal modulation source: sine wave, square wave, triangle wave, sawtooth wave.

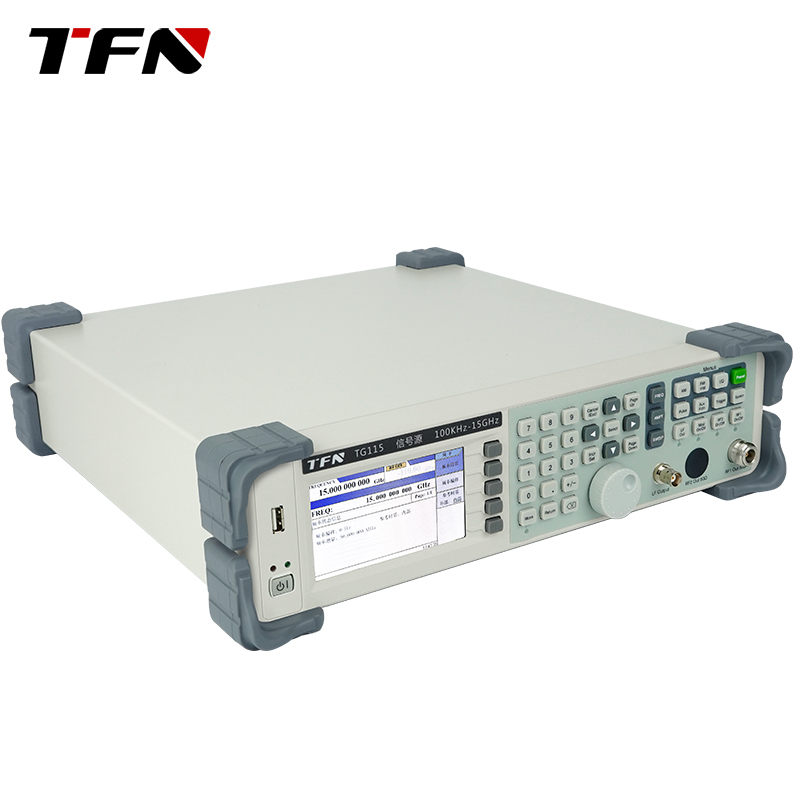

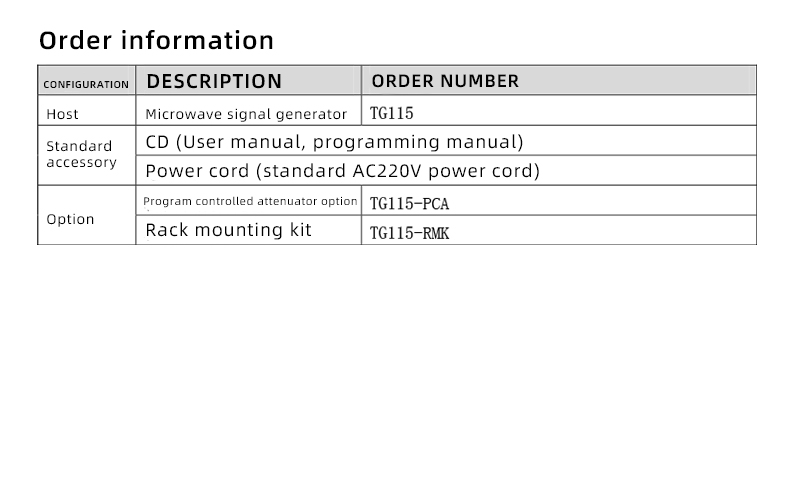

7. Standard 2U height for easy rack integration; rack mounting kit available.

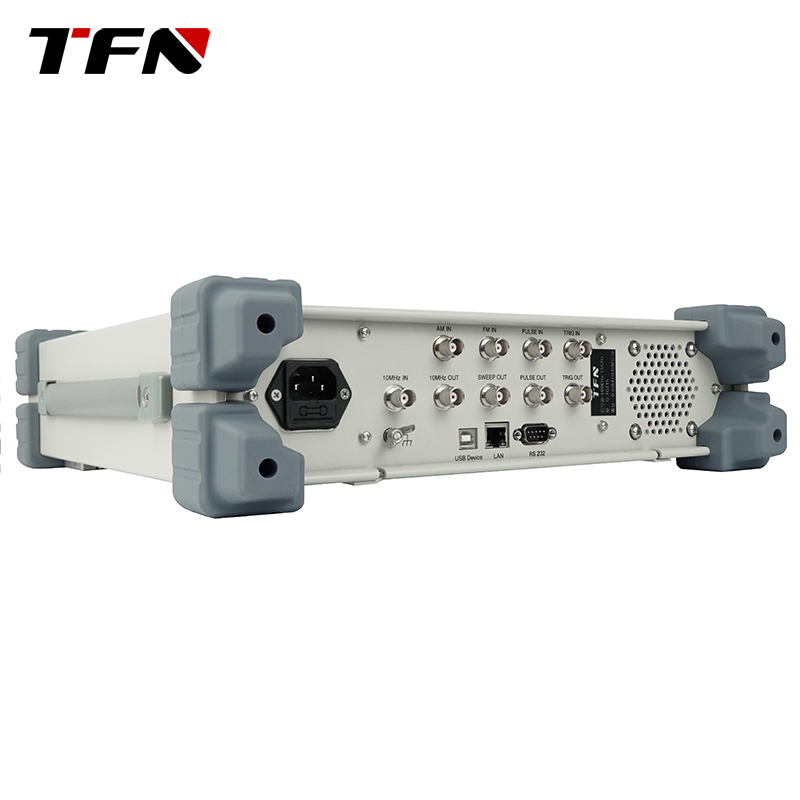

8. USB/LAN remote control interface, provide standard SCPI command set.
